Combination machines put a sheet cutting table and an integrated pipe and profile unit in one chassis, so one investment and one footprint cover flat parts and tube work. Open, double-table and fully enclosed configurations are available.
| Model | Working area | Laser power options | Machine weight | Machine dimensions | Axis travel | Axis speeds | Accuracy | Table change | Max profile length | Max profile diameter |
|---|---|---|---|---|---|---|---|---|---|---|
| FLO-P 1530 | 1500 x 3000 mm | 1000 W / 2000 W / 3000 W | 3850 kg | 3150 x 8150 x 1980 mm | X-Y 1520 x 3030 mm · Z 400 mm | X-Y 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | — | 600 mm | Ø 200 mm |
| FLO-P 2040 | 2000 x 4000 mm | 1000 W / 2000 W / 3000 W | 5500 kg | 4400 x 8150 x 1980 mm | X-Y 2040 x 4050 mm · Z 400 mm | X-Y 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | — | 600 mm | Ø 200 mm |
| FLO-P 2060 | 2000 x 6000 mm (79" x 236") | 1000 W / 2000 W / 3000 W | 6,900 kg | 3700 x 8752 x 1980 mm | X-Y 2020 x 6080 mm · Z 400 mm | XY 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | — | 6100 mm standard (9 m / 30 ft optional) | Up to Ø220 mm standard, Ø350 mm optional |
| FLO-D-P 1530 | 1500 x 3000 mm (5 x 10 ft) | 1000 W / 2000 W / 3000 W | 4500 kg (9900 lbs) | 2355 x 8580 x 1980 mm (7.7 x 28.1 x 6.5 ft) | X-Y 1520 x 3030 mm · Z 100 mm | X-Y 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | 10 seconds | 6100 mm standard (9 m / 30 ft optional) | Up to Ø220 mm standard, Ø350 mm optional |
| FLC-P 1530 | 1500 x 3000 mm | 2 kW / 3 kW / 4 kW / 6 kW / 8 kW / 12 kW / 20 kW | 12000 kg | 4400 x 10000 x 2120 mm | X-Y 1520 x 3030 mm · Z 300 mm | X-Y 100 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | 10 sec | 6000 mm standard (9 m / 30 ft optional) | Up to Ø350 mm |
| FLC-P 2040 | 2000 x 4000 mm | 2 kW / 3 kW / 4 kW / 6 kW / 8 kW / 12 kW / 20 kW | 11500 kg | 4400 x 10000 x 2120 mm | X-Y 2020 x 4050 mm · Z 350 mm | X-Y 100 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | 10 sec | 6000 mm standard (9 m / 30 ft optional) | Up to Ø350 mm |
Specifications are drawn from Mekotek documentation. North American electrical and laser power configurations are available — confirm site requirements and current configurations with our team.
Sheet and tube cutting in one compact chassis

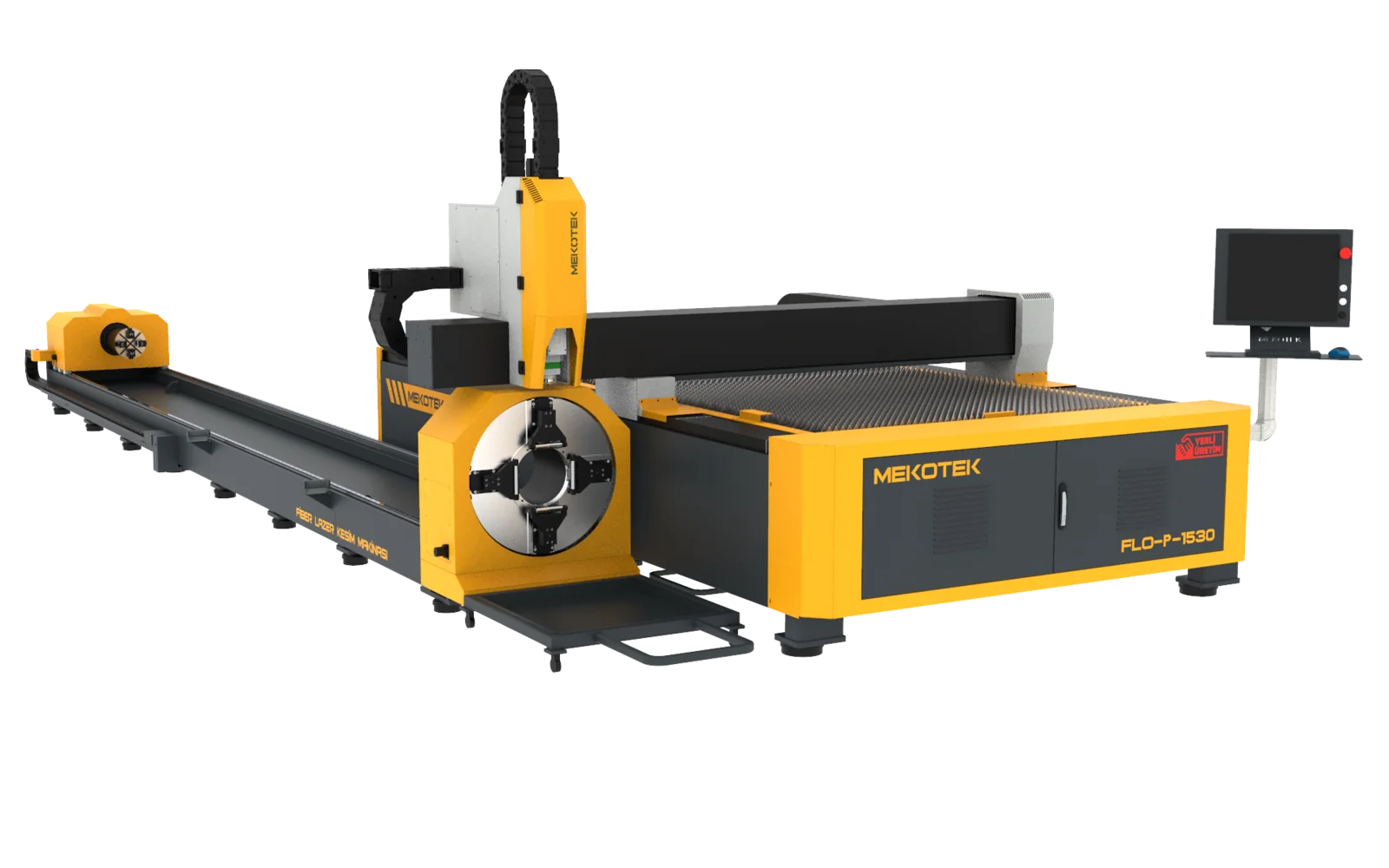

The FLO-P 1530 combines the 5 x 10 open table with an integrated pipe and profile unit, so one machine and one footprint cover flat parts and tube work without a second capital purchase.
View FLO-P 1530 specsLarge-format sheet plus integrated tube cutting
The FLO-P 2040 pairs a 2000 x 4000 mm open table with the integrated pipe and profile unit, so oversize flat parts and tube work run on the same machine.
View FLO-P 2040 specs
6 metre sheet and 6 metre tube on one machine

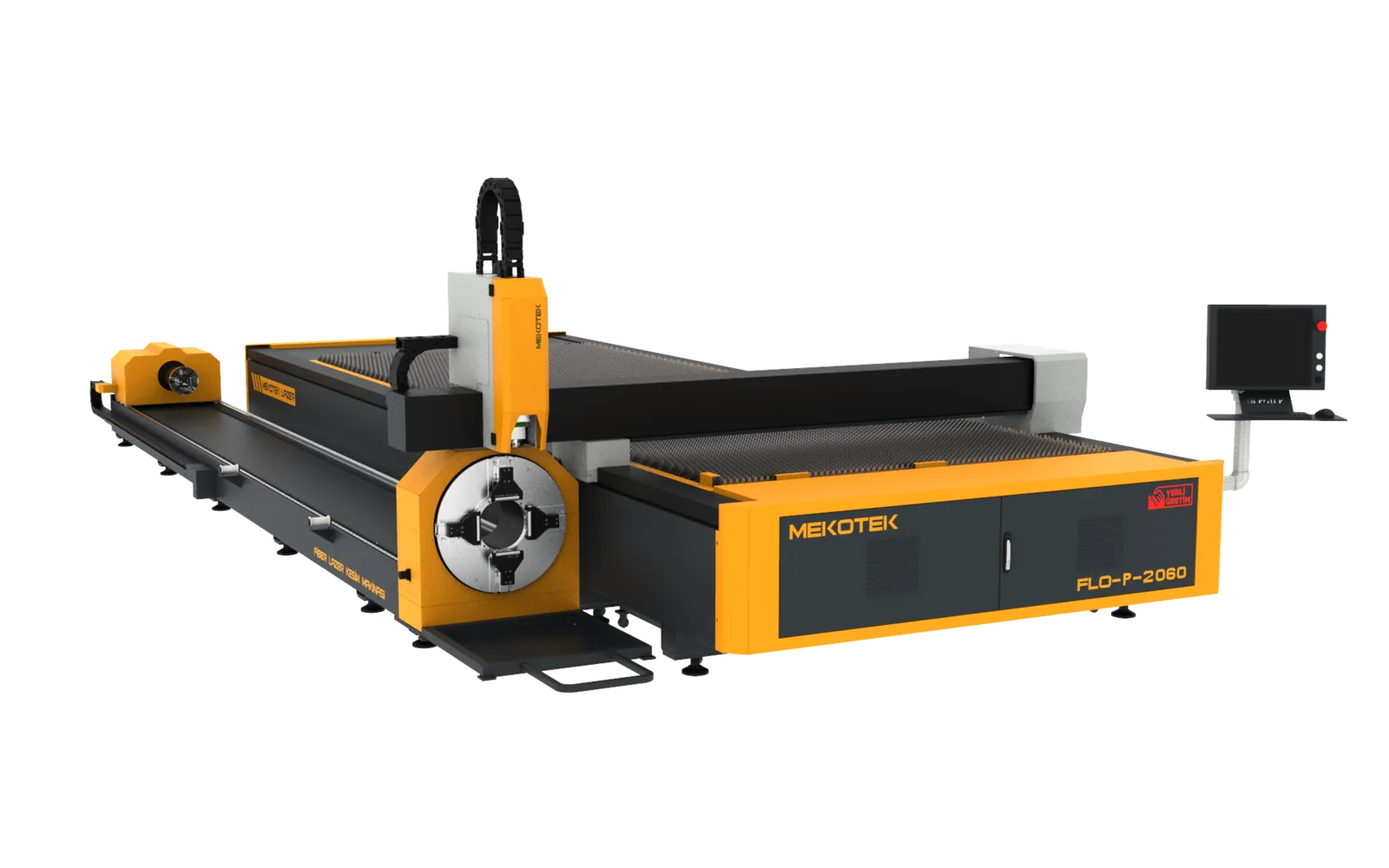

The FLO-P 2060 is the largest open combination platform: full 2000 x 6000 mm plate plus the integrated pipe and profile unit. Long sheet and long tube finish in one machine, with no pre-cutting and no second setup.
View FLO-P 2060 specs
Double shuttle tables plus integrated tube cutting

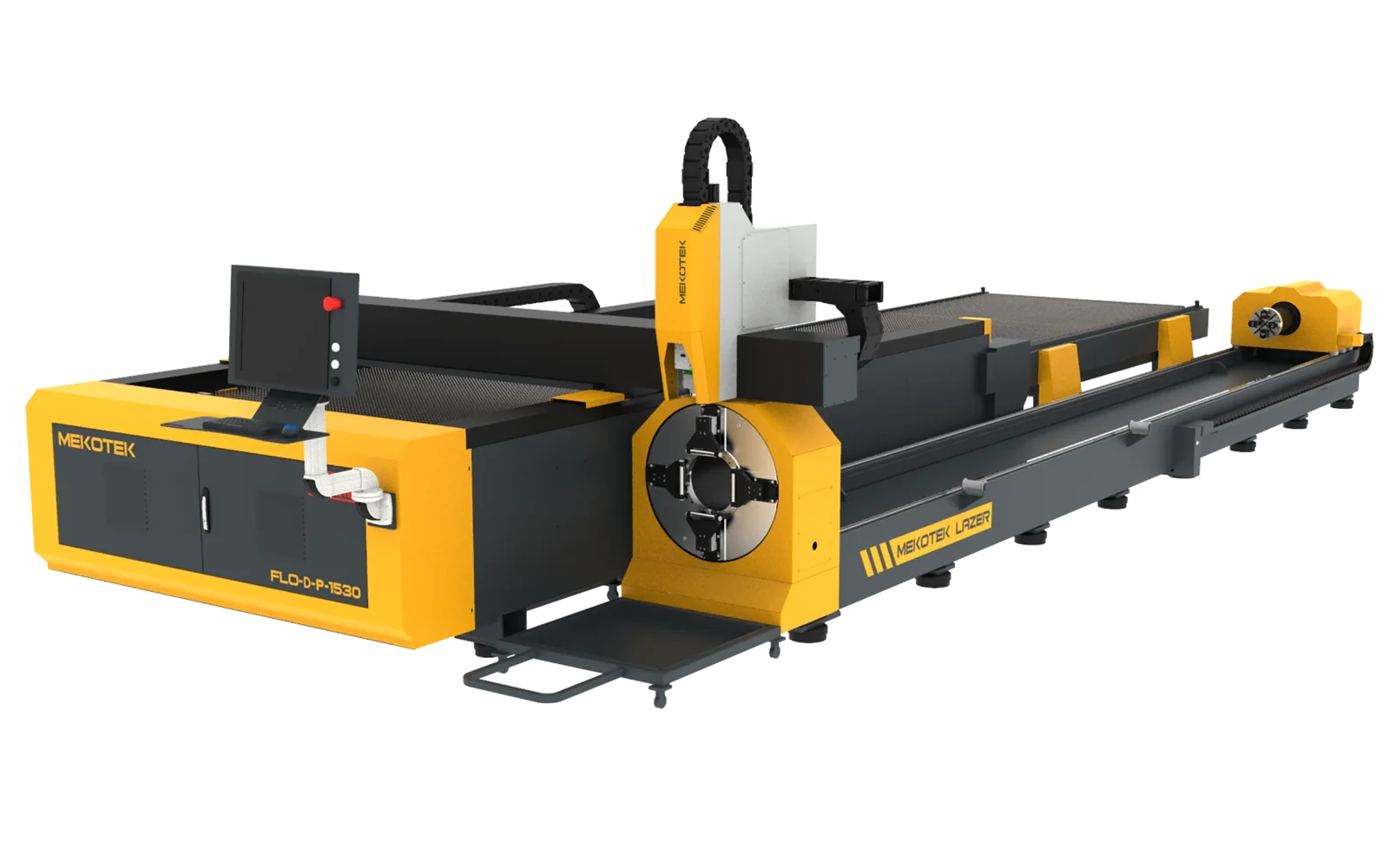

The FLO-D-P 1530 is the most automated open platform: two shuttle tables with a 10 second change plus the integrated pipe and profile unit. Sheet loading happens off-cycle, and tube work stays on the same machine.
View FLO-D-P 1530 specs
Enclosed 5 x 10 sheet plus integrated tube cutting

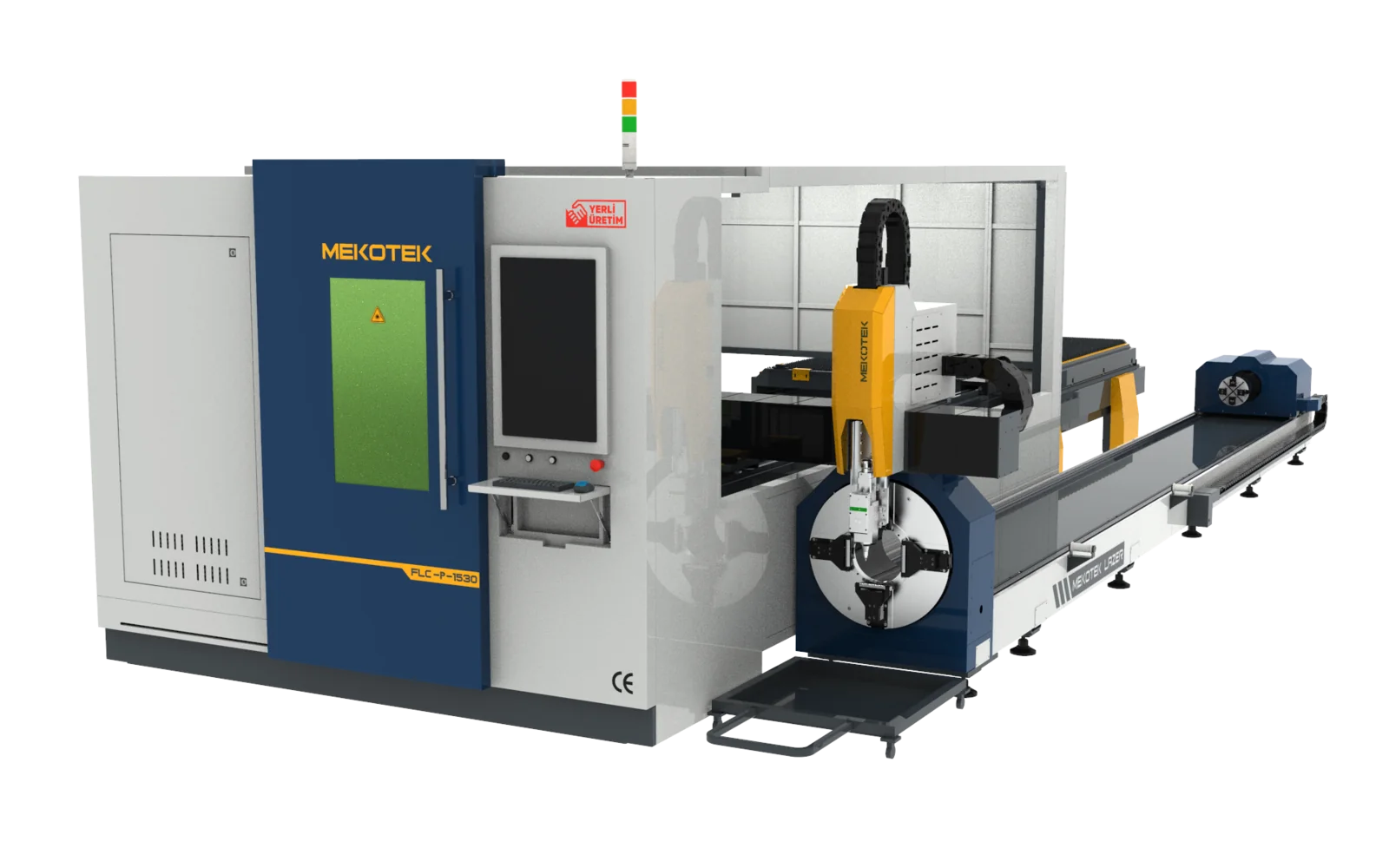

Fully enclosed 1500 x 3000 mm platform with an integrated pipe and profile unit — contained sheet cutting and tube cutting in a single cell, with one-button auto-centring chucks.
View FLC-P 1530 specs
Enclosed 2000 x 4000 mm sheet plus tube cutting
Enclosed large-format platform with an integrated pipe and profile unit for shops running oversize flat parts and tube work in one contained cell.
View FLC-P 2040 specs
