Enclosed fiber lasers contain the cutting process inside an interlocked cabin with fume extraction, which keeps the shop floor cleaner and simplifies workplace safety planning. Mekotek enclosed platforms run from a 5 x 10 bed up to full 6 metre plate.
| Model | Working area | Laser power options | Axis travel | Axis speeds | Table change | CNC control |
|---|---|---|---|---|---|---|
| FLC 1530 | 1500 x 3000 mm | 2 kW / 3 kW / 4 kW / 6 kW / 8 kW / 12 kW / 20 kW | X-Y 1520 x 3030 mm · Z 300 mm | X-Y 80 m/min · Z 30 m/min | 10 sec | Fscut |
| FLC 2040 | 2000 x 4000 mm | 2 kW / 3 kW / 4 kW / 6 kW / 8 kW / 12 kW / 20 kW | X-Y 2020 x 4040 mm · Z 300 mm | X-Y 80 m/min · Z 30 m/min | 10 sec | Fscut |
| FLC 2060 | 2000 x 6000 mm | 2 kW / 3 kW / 4 kW / 6 kW / 8 kW / 12 kW / 20 kW | X-Y 2020 x 6050 mm · Z 350 mm | X-Y 100 m/min · Z 30 m/min | 10 sec | Fscut |
Specifications are drawn from Mekotek documentation. North American electrical and laser power configurations are available — confirm site requirements and current configurations with our team.

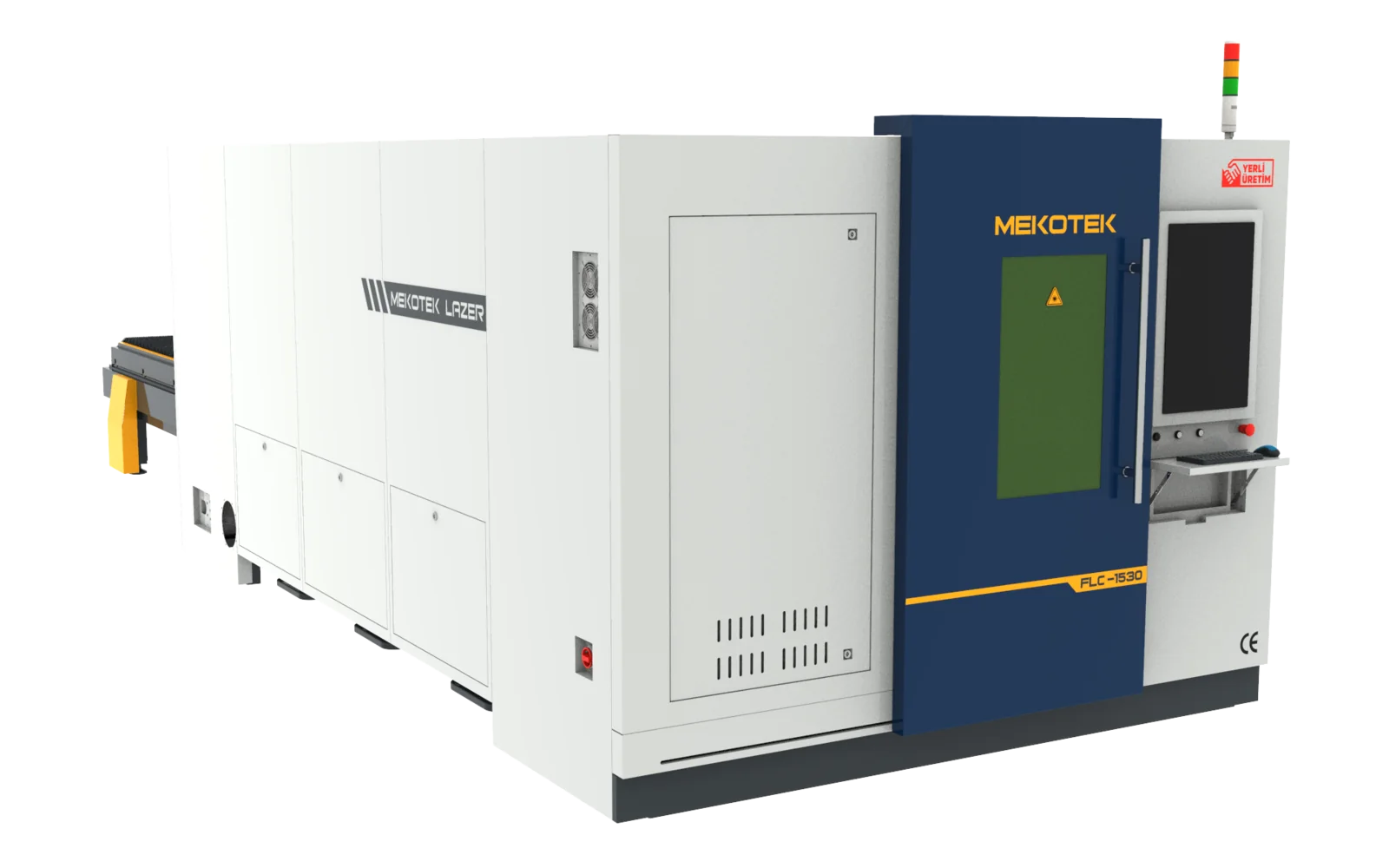

Fully enclosed 5 x 10 fiber laser
Fully enclosed 1500 x 3000 mm platform with interlocked access and extraction for a cleaner, quieter and better-contained cutting cell. Dual shuttle tables change in 10 seconds so loading happens off-cycle.
View FLC 1530 specs

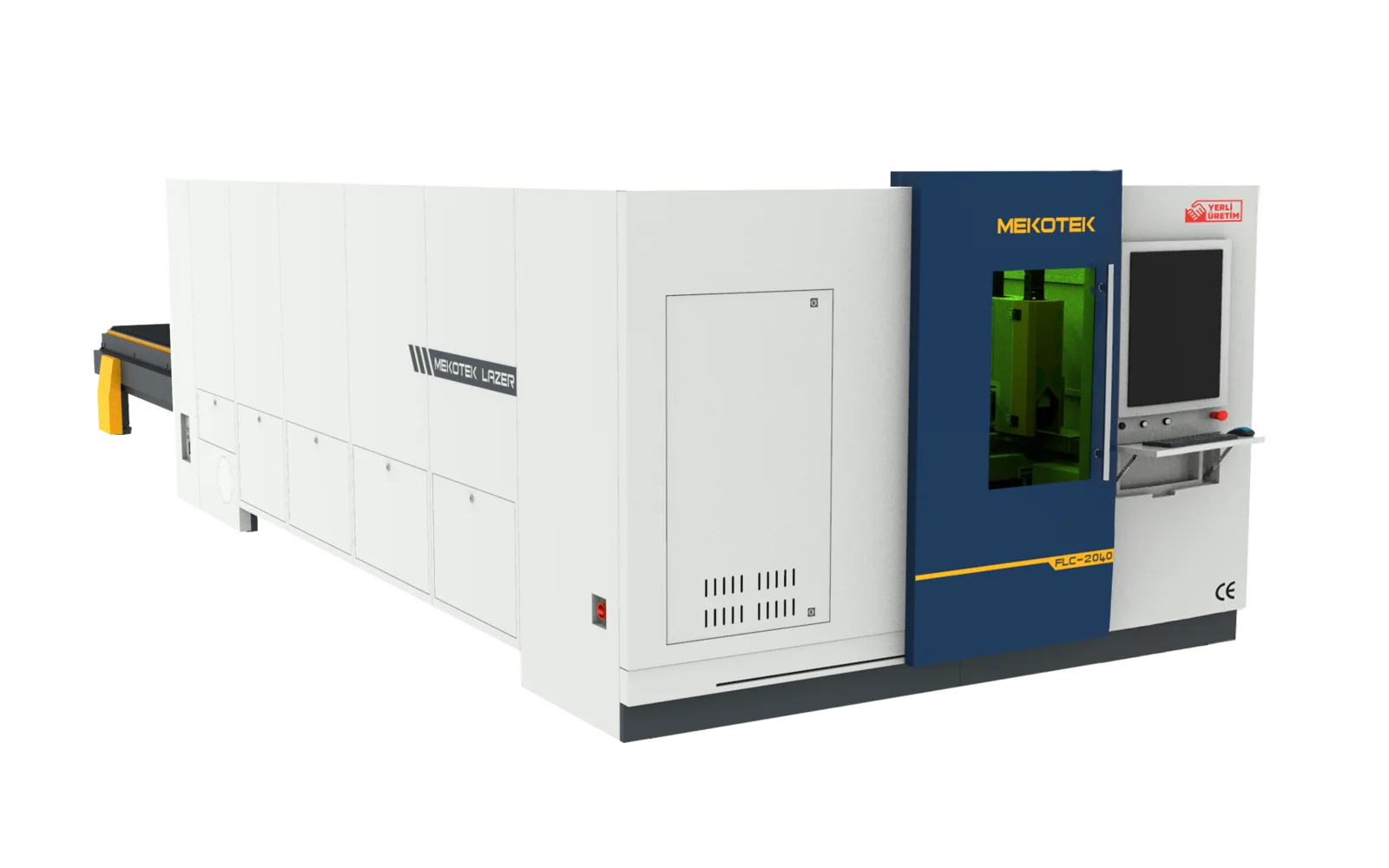

Enclosed 2000 x 4000 mm fiber laser
Enclosed large-format platform for shops that need a 2000 x 4000 mm bed inside a contained, extraction-equipped cabin, with dual shuttle tables changing in 10 seconds.
View FLC 2040 specs

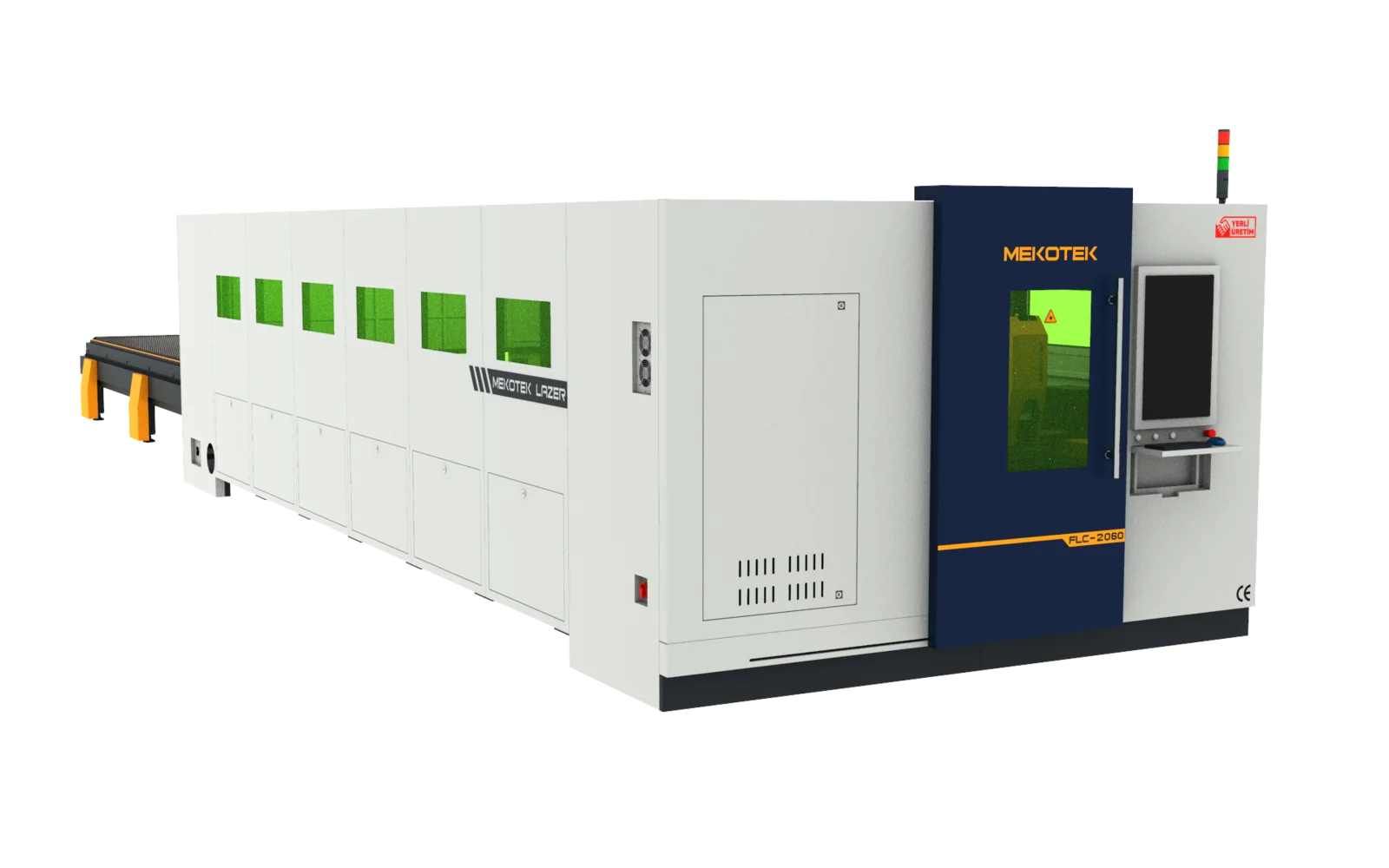

Enclosed 6 metre fiber laser
The largest enclosed platform, processing full 2000 x 6000 mm plate inside a contained cabin with extraction and dual shuttle tables.
View FLC 2060 specs
