FLC 2040 Enclosed Fiber Laser

    Enclosed 2000 x 4000 mm fiber laser

    Enclosed large-format platform for shops that need a 2000 x 4000 mm bed inside a contained, extraction-equipped cabin, with dual shuttle tables changing in 10 seconds.

    Mekotek FLC 2040 fully enclosed fiber laser cutting machine, 2000 x 4000 mm bed

    FLC 2040 in action

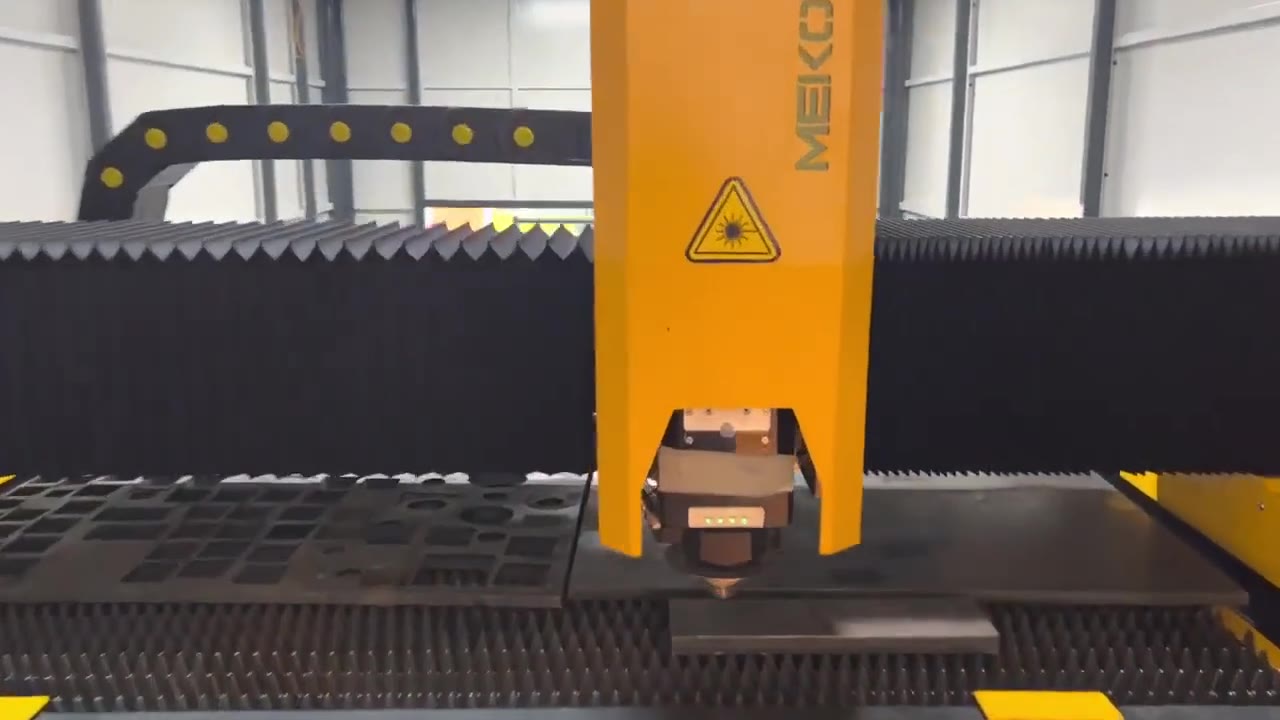

    FLC 2040 Enclosed Fiber Laser in operation
    Enclosed fiber laser cutting demonstration

    FLC 2040 specifications

    FLC 2040 manufacturer specifications
    SPECIFICATIONSVALUE
    Working Area2000 x 4000 mm
    Loading Capacity1200 kg
    X-Y Axis Travel2020 x 4040 mm
    Z Axis Travel300 mm
    X-Y-Z Axis Guideway4 Point Ball Caged
    X-Y Axis Drive SystemRack
    Z Axis Drive SystemBallscrew
    X-Y Axis Speed80 m/min
    Z Axis Speed30 m/min
    X-Y Position Accuracy0,05 mm
    X-Y Repeatability Accuracy0,03 mm
    Table Change Time10 sec
    Laser SourceRaycus / Han’s / JPT
    Laser Source Output Power2 – 20 kW
    CNC Control SystemFscut
    Laser Cutting HeadRaytools / BOCI / WSX
    Assist GasesAir/Oxygen/Nitrogen
    Cooling TypeWater Cooling
    Machine Weight10000 kg
    Machine Dimensions (WxLxH)3500 x 11200 x 2560 mm
    Graphic Formatdwg / dxf / stp
    Voltage380 / 50 Hz
    CertificationsCE / ISO
    Warranty2 Years

    Specifications as published by the manufacturer for FLC 2040. Confirm the North American configuration and site requirements with Mekotek Canada.

    Typical applications

    • Large-format production cutting
    • Structural and body component work
