FLO-P 2040 Open Type Sheet & Pipe Fiber Laser
Large-format sheet plus integrated tube cutting
The FLO-P 2040 pairs a 2000 x 4000 mm open table with the integrated pipe and profile unit, so oversize flat parts and tube work run on the same machine.

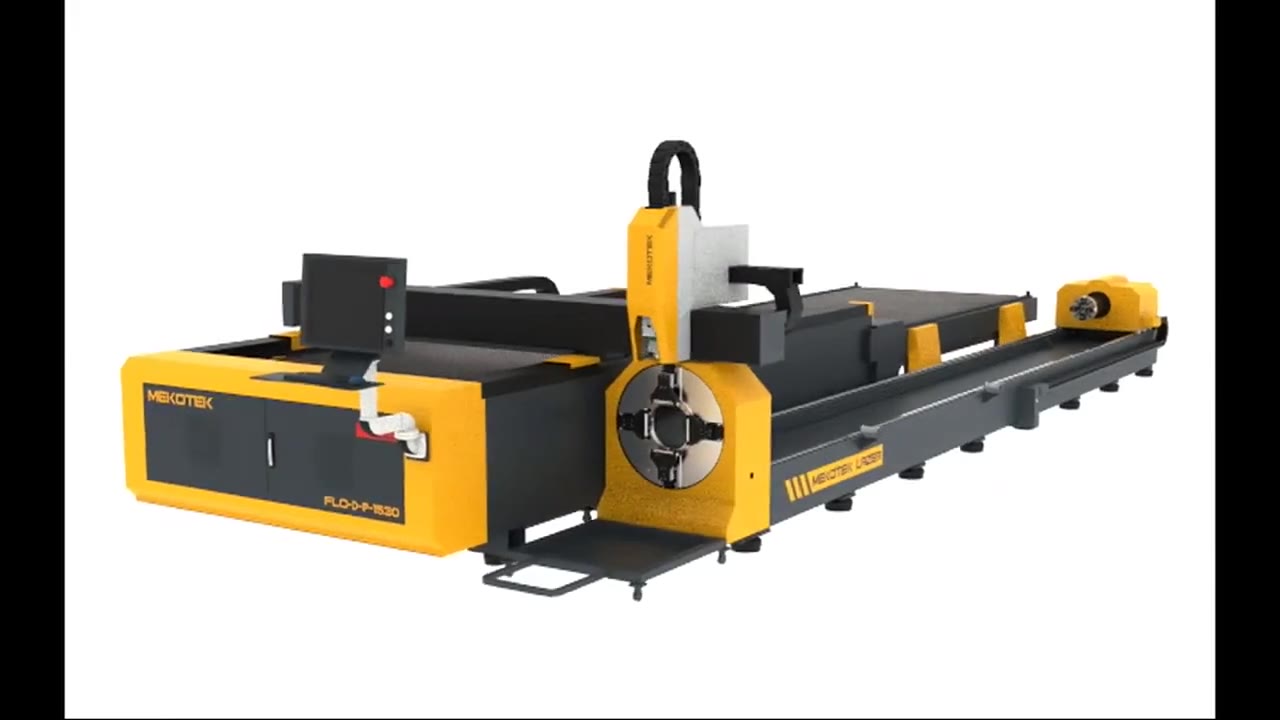

Sheet + Pipe Fiber Lasers footage — shown: FLO-D-P 1530
FLO-P 2040 specifications
FLO-P 2040 Technical Specifications
| SPECIFICATIONS | VALUE |
|---|---|
| Working Area (mm) | 2000 x 4000 mm |
| Maximum Loading Capacity (Sheet / Profile) (kg) | 1200 / 260 kg |
| X-Y Axis Travel (mm) | 2020 x 4050 mm |
| Z Axis Travel (mm) | 400 mm |
| X-Y-Z Axis Guideway | 4 Point Ball Caged |
| X-Y Axis Drive System | Rack |
| Z Axis Drive System | Ballscrew |
| X-Y Axis Speed (resultant speed) (m/min) | 80 m/min |
| Z Axis Speed (m/min) | 30 m/min |
| X-Y Position Accuracy (mm) | ±0,05 mm |
| X-Y Repeatability Accuracy (mm) | ±0,03 mm |
| Max. Profile Length (mm) | 6100 mm |
| Max. Profile Dimensions (mm) | Ø 220 |
| Laser Source | Han’s / Raycus / JPT |
| Laser Source Output Power | 1 kW 2 kW 3 kW 4 kW 6 kW |
| CNC Control System | Cypcut / Weihong / Mekotek |
| Laser Cutting Head | BOCI / Han’s / Raytools |
| Assist Gases | Air/Oxygen/Nitrogen |
| Cooling Type | Water Cooling |
| Machine Weight (kg) | 5500 kg |
| Machine Dimensions (mm) | 3700 x 8667 x 1980 mm |
| Graphic Format | dwg / dxf / stp |
| Voltage (manufacturer, Turkey supply) | 380 / 50 Hz |
| Certifications | CE / ISO |
| Warranty | 1-year manufacturer warranty (Mekotek Canada). |
- Voltage shown is the manufacturer (Turkey) supply; confirm North American voltage/phase/Hz with Mekotek Canada.
FLO-P 2040 Cutting Thicknesses
| Thickness | 1 kW | 2 kW | 3 kW | 4 kW | 6 kW |
|---|---|---|---|---|---|
| Carbon Steel | 10 mm | 20 mm | 22 mm | 25 mm | 25 mm |
| Stainless Steel | 5 mm | 8 mm | 10 mm | 12 mm | 20 mm |
| Aluminium | 3 mm | 6 mm | 8 mm | 10 mm | 16 mm |
| Brass | 3 mm | 5 mm | 6 mm | 8 mm | 12 mm |
Manufacturer specifications shown. North American laser power, electrical requirements, and available configurations must be confirmed with Mekotek Canada.
Typical applications
- Structural steel and frame fabrication
- Trailer, chassis and body manufacturing
- Mixed large-format sheet and tube shops
- Contract cutting with varied part mix
