Open-table fiber lasers give operators direct crane and forklift access to the cutting bed, which shortens setup time and suits shops running varied jobs. Mekotek offers single-table models from 5 x 10 up to full 6 metre plate, plus a double shuttle-table configuration for continuous cutting.
| Model | Working area | Laser power options | Machine weight | Machine dimensions | Axis travel | Axis speeds | Accuracy | Table change |
|---|---|---|---|---|---|---|---|---|
| FLO 1530 | 1500 x 3000 mm (5 x 10 ft) | 1000 W / 2000 W / 3000 W | 2600 kg (5700 lbs) | 2355 x 4302 x 1980 mm (7.7 x 14.1 x 6.5 ft) | X-Y 1520 x 3030 mm · Z 100 mm | X-Y 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | — |
| FLO 2040 | 2000 x 4000 mm (6.5 x 13 ft) | 1000 W / 2000 W / 3000 W | 4000 kg (8818 lbs) | 3000 x 5700 x 1980 mm (9.8 x 18.7 x 6.5 ft) | X-Y 2020 x 4050 mm · Z 100 mm | X-Y 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | — |
| FLO 2060 | 2000 x 6000 mm (79" x 236") | 1000 W / 2000 W / 3000 W | 5,400 kg | 2825 x 7822 x 1980 mm | X-Y 2020 x 6080 mm · Z 100 mm | XY 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | — |
| FLO-D 1530 | 1500 x 3000 mm (5 x 10 ft) | 1000 W / 2000 W / 3000 W | 4500 kg (9900 lbs) | 2355 x 8580 x 1980 mm (7.7 x 28.1 x 6.5 ft) | X-Y 1520 x 3030 mm · Z 100 mm | X-Y 80 m/min · Z 30 m/min | Positioning ±0.05 mm · Repeatability ±0.03 mm | 10 seconds |
Specifications are drawn from Mekotek documentation. North American electrical and laser power configurations are available — confirm site requirements and current configurations with our team.

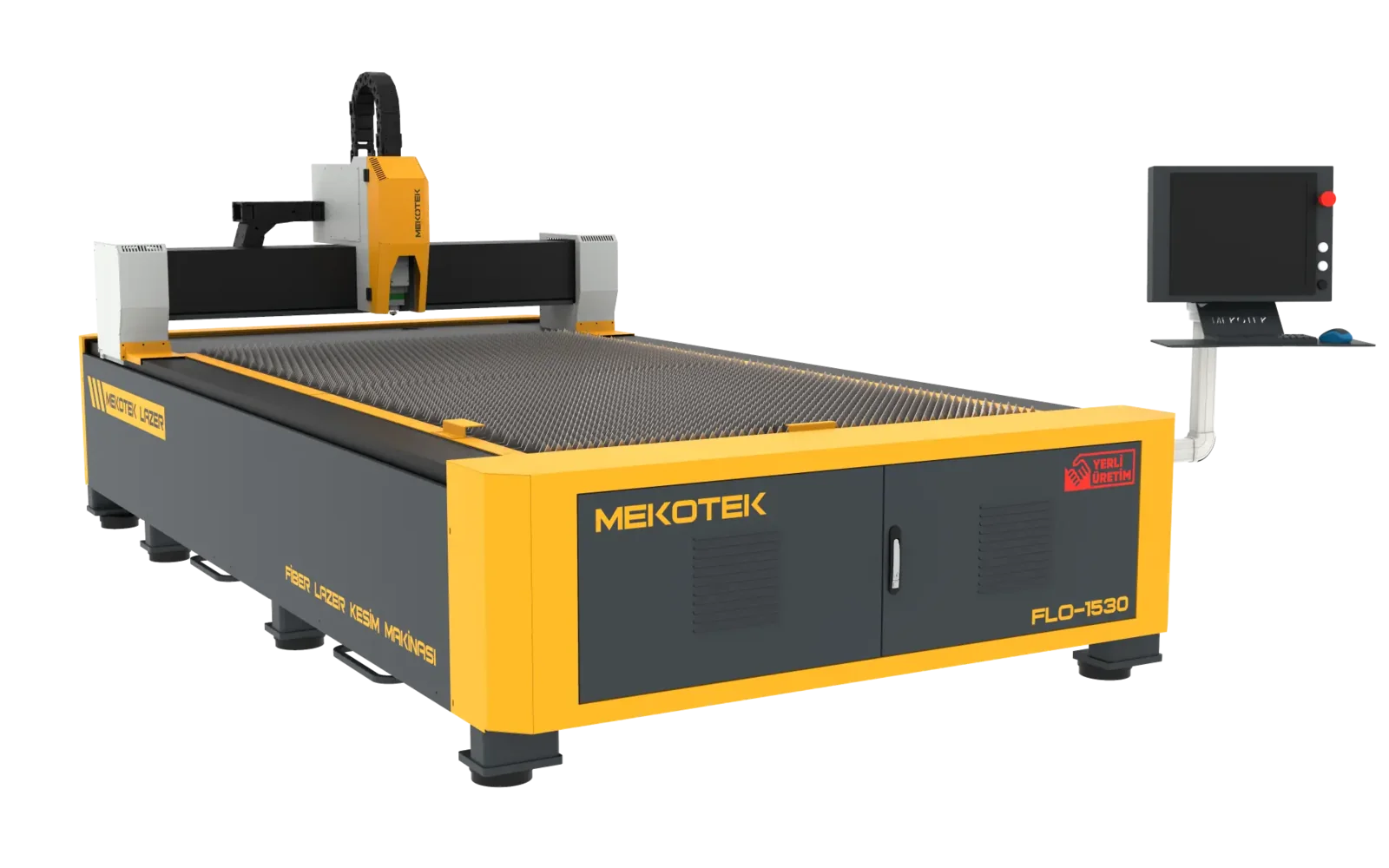

Compact 5 x 10 open-table fiber laser
The FLO 1530 pairs a 1500 x 3000 mm open table with fast crane or forklift loading, so material handling never waits on a shuttle cycle. It is the entry point into in-house fiber laser cutting for small and mid-size fabrication shops that want throughput without a full enclosure.
View FLO 1530 specs

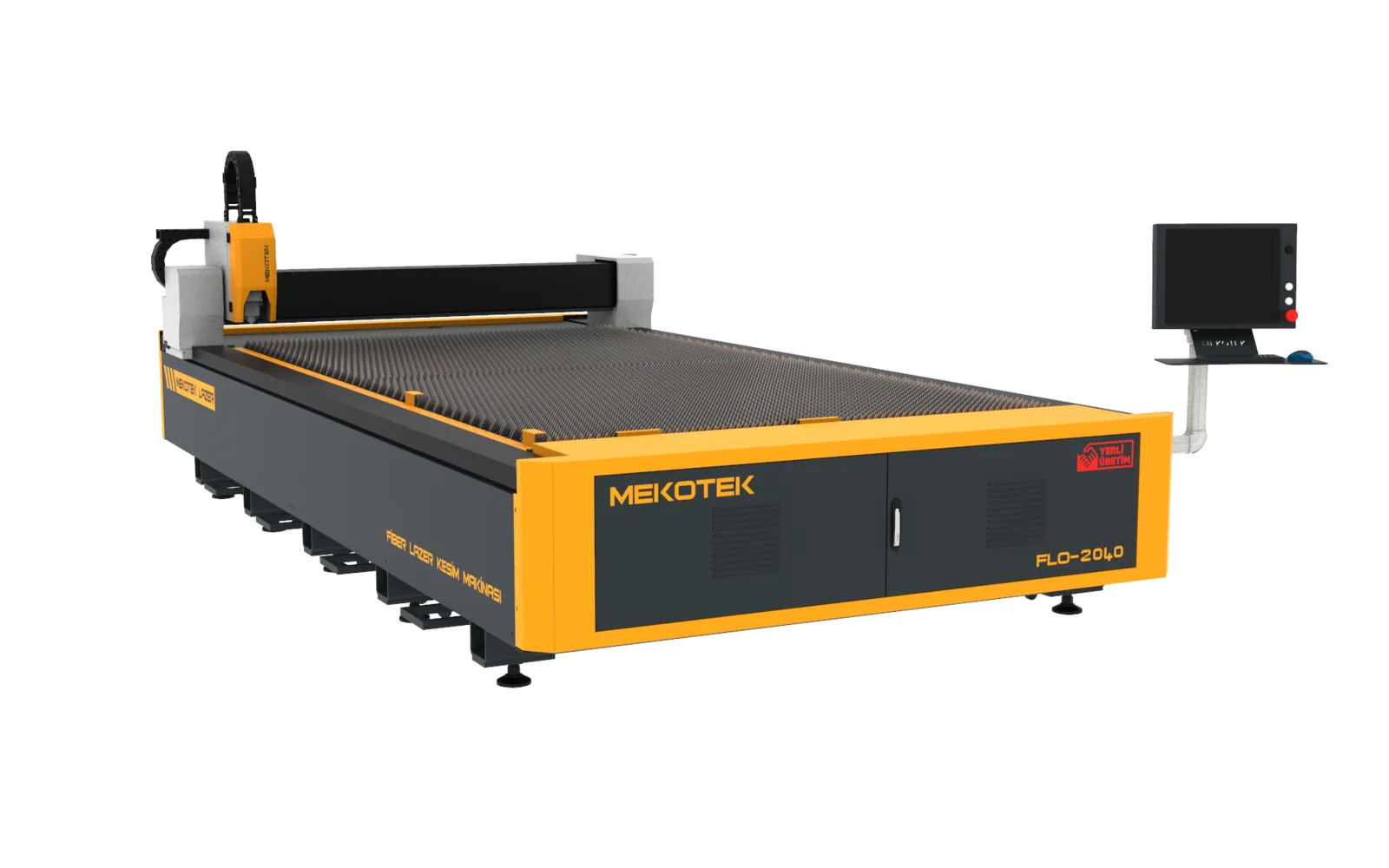

Heavy 2000 x 4000 mm open-table fiber laser
The FLO 2040 steps up to a 2000 x 4000 mm bed on a heavy welded frame, holding accuracy on large structural and body panels that would otherwise be pre-cut before processing.
View FLO 2040 specs6 metre open-table fiber laser
The FLO 2060 processes full 2000 x 6000 mm plate in one piece, removing the guillotine or pre-shear step from long parts and improving nesting yield on standard 6 metre sheet.
View FLO 2060 specs

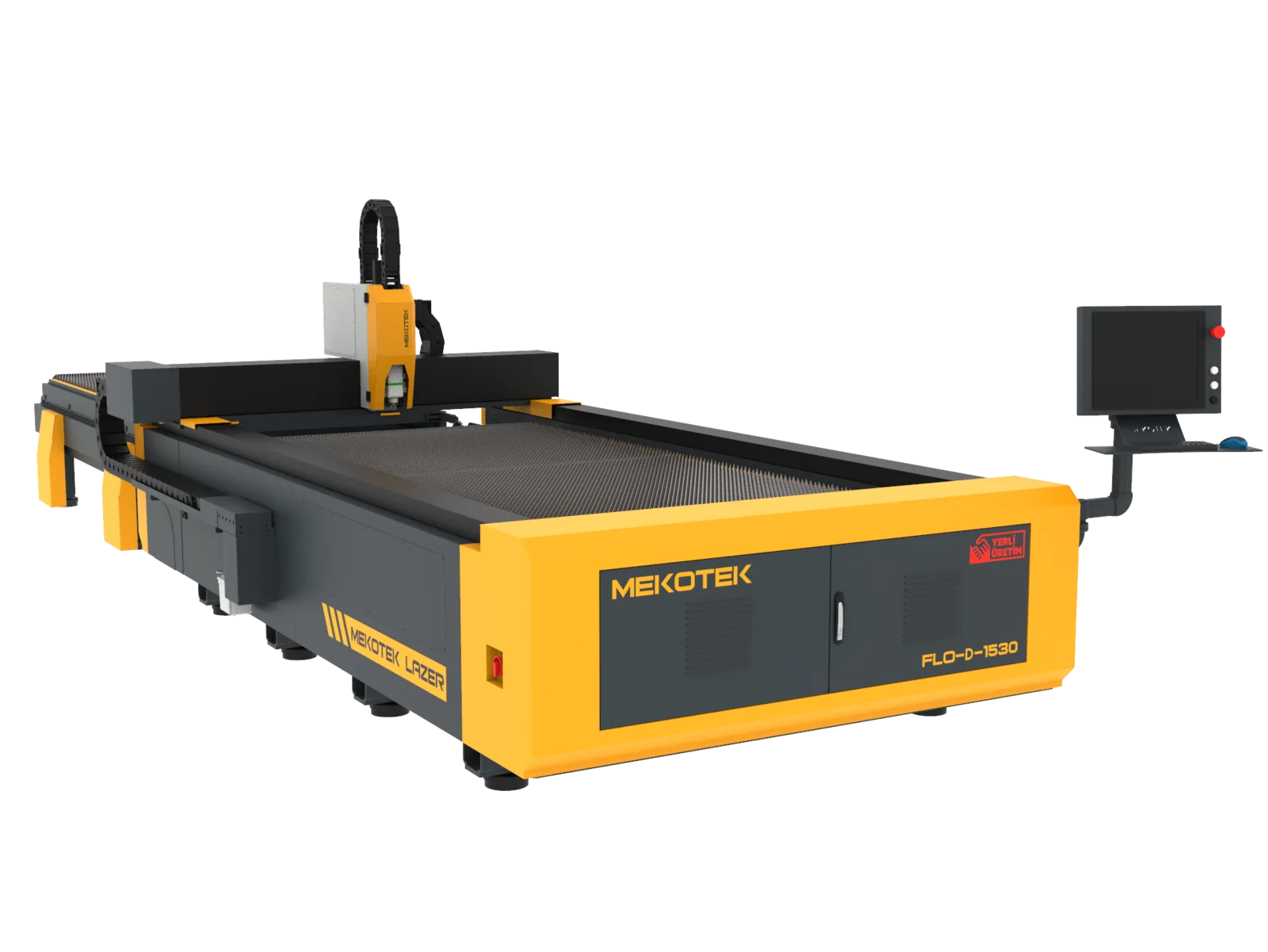

Double shuttle tables, 10 second changeover
The FLO-D 1530 adds a second shuttle table to the 5 x 10 open platform. One table is loaded and unloaded while the other cuts, with a 10 second table change, so the laser keeps cutting instead of waiting on the operator.
View FLO-D 1530 specs
