FLO 1530 Open Type Fiber Laser
Compact 5 x 10 open-table fiber laser
The FLO 1530 pairs a 1500 x 3000 mm open table with fast crane or forklift loading, so material handling never waits on a shuttle cycle. It is the entry point into in-house fiber laser cutting for small and mid-size fabrication shops that want throughput without a full enclosure.

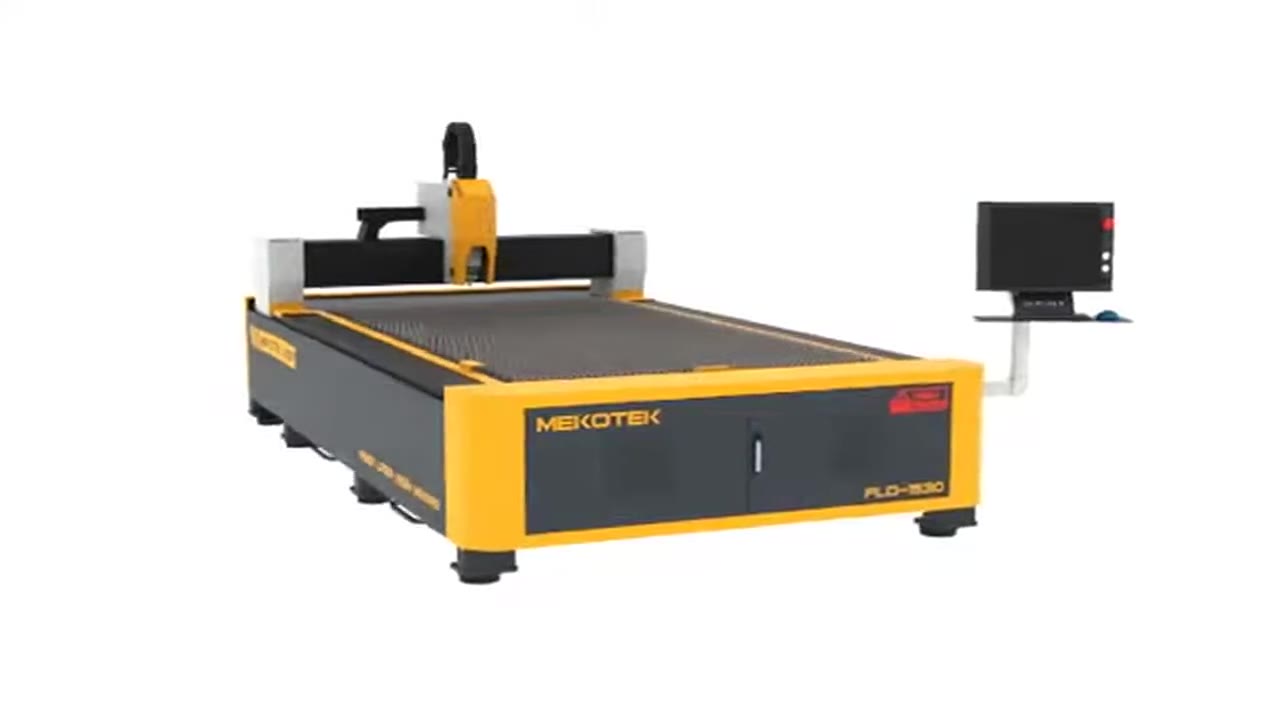

FLO 1530 in action
FLO 1530 specifications
FLO 1530 Technical Specifications
| SPECIFICATIONS | VALUE |
|---|---|
| Working Area (mm) | 1500 x 3000 mm |
| Maximum Loading Capacity (Sheet / Profile) (kg) | 800 kg |
| X-Y Axis Travel (mm) | 1520 x 3030 mm |
| Z Axis Travel (mm) | 100 mm |
| X-Y-Z Axis Guideway | 4 Point Ball Caged |
| X-Y Axis Drive System | Rack |
| Z Axis Drive System | Ballscrew |
| X-Y Axis Speed (resultant speed) (m/min) | 80 m/min |
| Z Axis Speed (m/min) | 30 m/min |
| X-Y Position Accuracy (mm) | ±0,05 mm |
| X-Y Repeatability Accuracy (mm) | ±0,03 mm |
| Laser Source | Han’s / Raycus / JPT |
| Laser Source Output Power | 1 kW 2 kW 3 kW 4 kW 6 kW |
| CNC Control System | Cypcut / Weihong / Mekotek |
| Laser Cutting Head | BOCI / Han’s / Raytools |
| Assist Gases | Air/Oxygen/Nitrogen |
| Cooling Type | Water Cooling |
| Machine Weight (kg) | 2600 kg |
| Machine Dimensions (mm) | 2355 x 4302 x 1980 mm |
| Graphic Format | dwg / dxf / stp |
| Voltage (manufacturer, Turkey supply) | 380 / 50 Hz |
| Certifications | CE / ISO |
| Warranty | 1-year manufacturer warranty (Mekotek Canada). |
- Voltage shown is the manufacturer (Turkey) supply; confirm North American voltage/phase/Hz with Mekotek Canada.
FLO 1530 Cutting Thicknesses
| Thickness | 1 kW | 2 kW | 3 kW | 4 kW | 6 kW |
|---|---|---|---|---|---|
| Carbon Steel | 10 mm | 20 mm | 22 mm | 25 mm | 25 mm |
| Stainless Steel | 5 mm | 8 mm | 10 mm | 12 mm | 20 mm |
| Aluminium | 3 mm | 6 mm | 8 mm | 10 mm | 16 mm |
| Brass | 3 mm | 5 mm | 6 mm | 8 mm | 12 mm |
Manufacturer specifications shown. North American laser power, electrical requirements, and available configurations must be confirmed with Mekotek Canada.
Typical applications
- Contract metal laser cutting shops
- Industrial kitchen and foodservice equipment
- Elevator cabin manufacturing
- Electrical panel and enclosure builders
- Lighting and fixture production
- Machine builders and defense suppliers
