FLC-P 1530 Enclosed Sheet & Pipe Fiber Laser

    Enclosed 5 x 10 sheet plus integrated tube cutting

    Fully enclosed 1500 x 3000 mm platform with an integrated pipe and profile unit — contained sheet cutting and tube cutting in a single cell, with one-button auto-centring chucks.

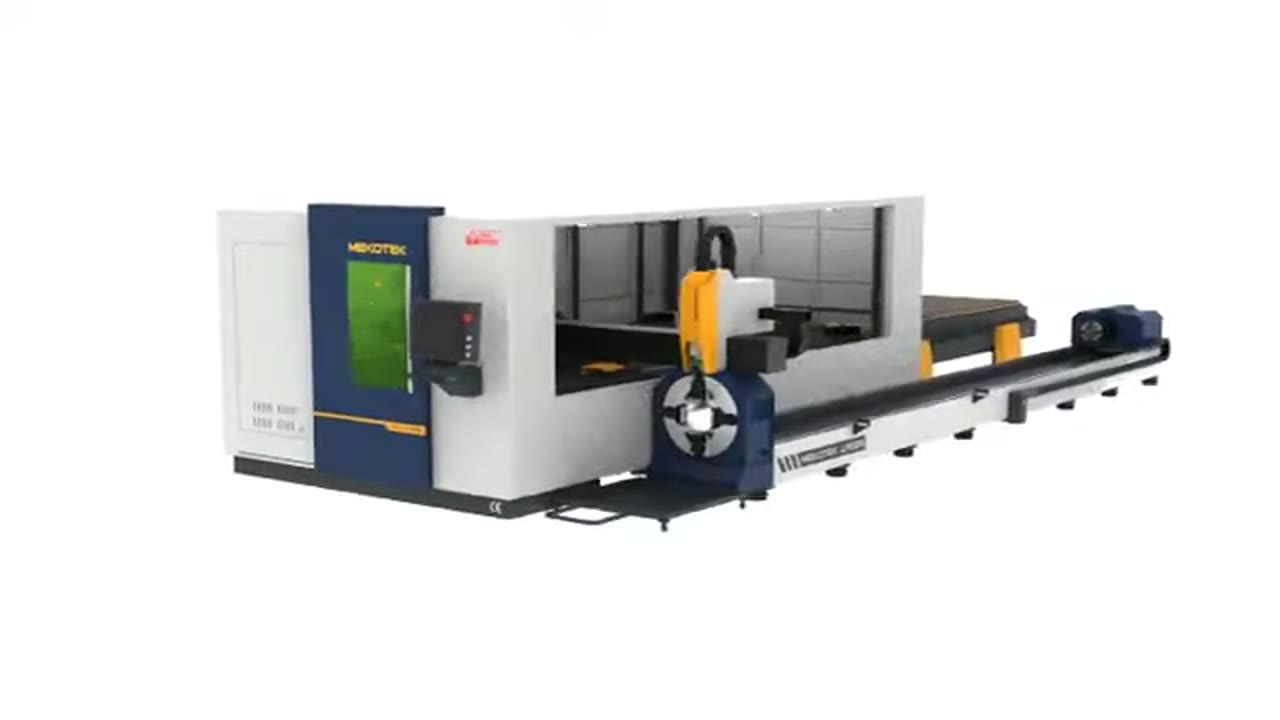

    Mekotek FLC-P 1530 fully enclosed fiber laser cutting machine with integrated pipe and profile unit

    FLC-P 1530 in action

    FLC-P 1530 Enclosed Sheet & Pipe Fiber Laser in operation
    Enclosed sheet & pipe fiber laser 360° product view

    FLC-P 1530 specifications

    FLC-P 1530 manufacturer specifications
    SPECIFICATIONSVALUE
    Working Area1500 x 3000 mm
    Loading Capacity1200 kg
    X-Y Axis Travel1520 x 3030 mm
    Z Axis Travel300 mm
    X-Y-Z Axis Guideway4 Point Ball Caged
    X-Y Axis Drive SystemRack
    Z Axis Drive SystemBallscrew
    X-Y Axis Speed100 m/min
    Z Axis Speed30 m/min
    X-Y Position Accuracy0,05 mm
    X-Y Repeatability Accuracy0,03 mm
    Table Change Time10 sec
    Laser SourceRaycus / Han’s / JPT
    Laser Source Output Power2 kW 3 kW 4 kW 6 kW 8 kW 12 kW 20 kW
    CNC Control SystemFscut
    Laser Cutting HeadRaytools / BOCI / WSX
    Assist GasesAir/Oxygen/Nitrogen
    Cooling TypeWater Cooling
    Machine Weight12000 kg
    Machine Dimensions (WxLxH)4400 x 10000 x 2120 mm
    Graphic Formatdwg / dxf / stp
    Voltage380 / 50 Hz
    CertificationsCE / ISO
    Warranty2 Years

    Specifications as published by the manufacturer for FLC-P 1530. Confirm the North American configuration and site requirements with Mekotek Canada.

    Typical applications

    • Mixed sheet and tube production
    • Safety-critical or shared-floor facilities

    Related models

    FLC 1530FLC-P 2040

    Same bed size, other configurations
