FLC-P 2040 Enclosed Sheet & Pipe Fiber Laser
Enclosed 2000 x 4000 mm sheet plus tube cutting
Enclosed large-format platform with an integrated pipe and profile unit for shops running oversize flat parts and tube work in one contained cell.

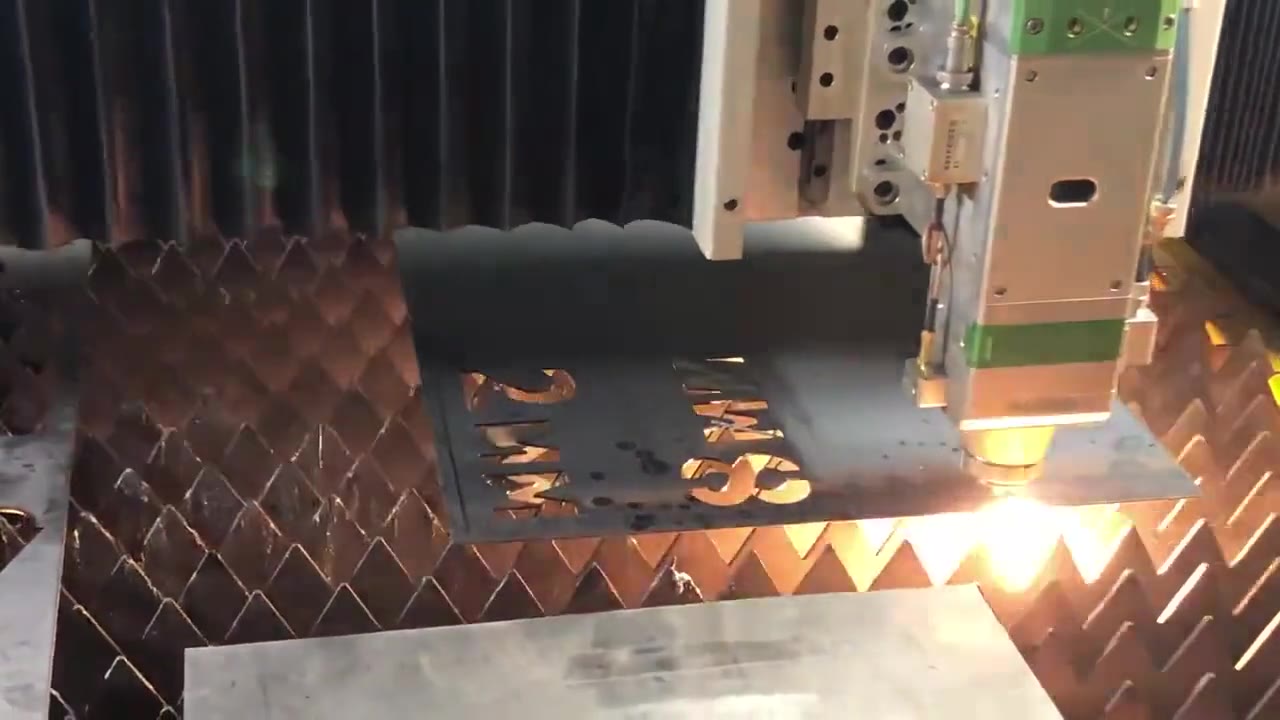

FLC-P 2040 in action
FLC-P 2040 specifications
FLC-P 2040 Technical Specifications
| SPECIFICATIONS | VALUE |
|---|---|
| Working Area (mm) | 2000 x 4000 mm |
| Maximum Loading Capacity (Sheet / Profile) (kg) | 1200 kg |
| X-Y Axis Travel (mm) | 2020 x 4050 mm |
| Z Axis Travel (mm) | 350 mm |
| X-Y-Z Axis Guideway | 4 Point Ball Caged |
| X-Y Axis Drive System | Rack |
| Z Axis Drive System | Ballscrew |
| X-Y Axis Speed (resultant speed) (m/min) | 80 m/min |
| Z Axis Speed (m/min) | 30 m/min |
| X-Y Position Accuracy (mm) | ±0,05 mm |
| X-Y Repeatability Accuracy (mm) | ±0,03 mm |
| Table Change Time (sec) | 10 sec |
| Max. Profile Length (mm) | 6100 mm |
| Max. Profile Dimensions (mm) | Ø 220 |
| Laser Source | Han’s / Raycus / JPT |
| Laser Source Output Power | 1 kW 2 kW 3 kW 4 kW 6 kW 12 kW |
| CNC Control System | Cypcut / Weihong / Mekotek |
| Laser Cutting Head | BOCI / Han’s / Raytools |
| Assist Gases | Air/Oxygen/Nitrogen |
| Cooling Type | Water Cooling |
| Machine Weight (kg) | 10000 kg |
| Machine Dimensions (mm) | 4120 x 11170 x 2300 mm |
| Graphic Format | dwg / dxf / stp |
| Voltage (manufacturer, Turkey supply) | 380 / 50 Hz |
| Certifications | CE / ISO |
| Warranty | 1-year manufacturer warranty (Mekotek Canada). |
- Voltage shown is the manufacturer (Turkey) supply; confirm North American voltage/phase/Hz with Mekotek Canada.
FLC-P 2040 Cutting Thicknesses
| Thickness | 1 kW | 2 kW | 3 kW | 4 kW | 6 kW | 12 kW |
|---|---|---|---|---|---|---|
| Carbon Steel | 10 mm | 20 mm | 22 mm | 25 mm | 25 mm | 40 mm |
| Stainless Steel | 5 mm | 8 mm | 10 mm | 12 mm | 20 mm | 40 mm |
| Aluminium | 3 mm | 6 mm | 8 mm | 10 mm | 16 mm | 40 mm |
| Brass | 3 mm | 5 mm | 6 mm | 8 mm | 12 m* | 16 m* |
- * Published by the manufacturer with the unit “m”; value not verified — confirm with Mekotek Canada.
Manufacturer specifications shown. North American laser power, electrical requirements, and available configurations must be confirmed with Mekotek Canada.
Typical applications
- Large-format mixed fabrication
- Contained production environments
